Construction Business Semi Trailer Truck 3 Axles High Work Efficiency
Semi Trailer Truck Description:
1. The series Semi Trailer Truck use through-going beam structure, has frame structure with flat type
and goosen neck type, also has high integral strength, small weight, beautiful appearance,
safe and reliable operation.
2. the series vehicle use advanced manufacture technology , makes automatic submerged
-arc welding for vertical beam, use shot blasting treatment for intergral frame, removes
welding stress effectively.
cement trailer also called bulk cement trailer, cement bulker trailer, cement trailer, bulk cement
semi trailer,cement truck powder semi trailer and bulk cement tank semi trailer.
Semi Trailer Truck Specification:
Construction Business Semi Trailer Truck 3 Axles High Work Efficiency
| Model | 3 Axles 60Tons |
| Axle | FUWA brand, 16ton, 3 Sets |
| Main beam | Beam height: 500mm Upper plate: 10mm Double Middle plate: 6 mm Down plate: 12mm |
| Cargo Body | 10500*2300*1500mm, floor:10mm, side:6mm |
| Material | Carbon steel or Mn steel |
| Gross vehicle weight | 75000kgs |
| King pin | #90 |
| Support leg | JOST Standard 28T |
| Suspension | Normal suspension |
| Thickness leaf spring | 10/10/10 |
| Tire/Rim | 1200R20, 13pcs, 8.5, 12 pcs |
| Brake Chamber | Standard 6 pcs |
| Spare wheel carrier | 2 pcs |
| Tool box | 1 pcs |
| Electrical System | Chinese standard 24C lighting system |
| Side Maker Lamp | LED lamp |
| Painting | Polyurethane Paint |
| Overall dimension | 12000×2500×3880(mm) |
| Color | White, red, green, golden and so on. |
Applications:
It’s suitable for Mining industry, Construction business, docks, for transporting soil, sand, stones and so on.
Competitive Advantage:
1) Optimized cargo body structure,light weight,high rigidity,large loading capacity
2) Using the high strength steel,it has long service life
3) Optimized the whole truck structure has lower center of gravity,with higher security when lifting the cargo
body.
4) the key parts adopt the world's top technology products
5) based on strong technical support and top level technology make the trucks with high quality and more
reliable
Construction Business Semi Trailer Truck
Product Tags:
|
|

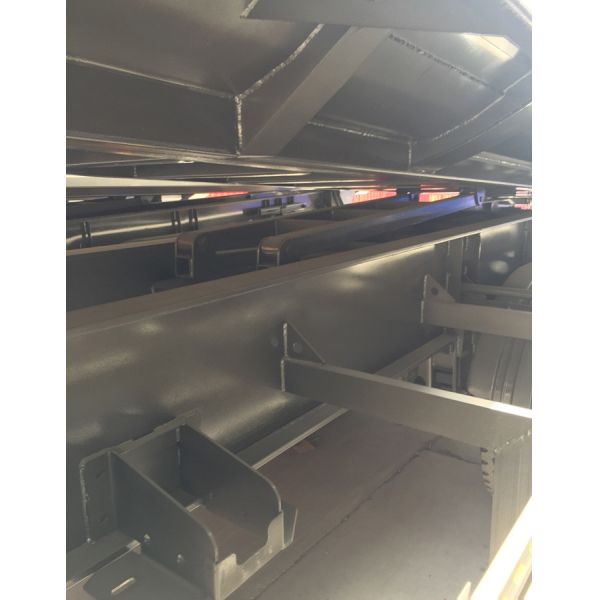

Construction Business Semi Trailer Truck 3 Axles High Work Efficiency Images
|
